The truth behind Chrysler’s charging system design and why a simple gauge conversion can improve reliability in classic muscle cars.

A Look at One of the Most Popular Electrical Upgrades for Classic Chrysler Muscle Cars

Walk through any Mopar show field and you’ll find owners debating originality versus reliability. Few topics spark more discussion than the factory ammeter found in Chrysler, Plymouth, and Dodge muscle cars of the 1960s and 1970s. While some enthusiasts wouldn’t dream of altering the original charging system, others consider a voltmeter conversion one of the smartest upgrades that can be made to a regularly driven classic.

So why the controversy?

The answer lies in Chrysler’s unique electrical design.

Chrysler Did Things Differently

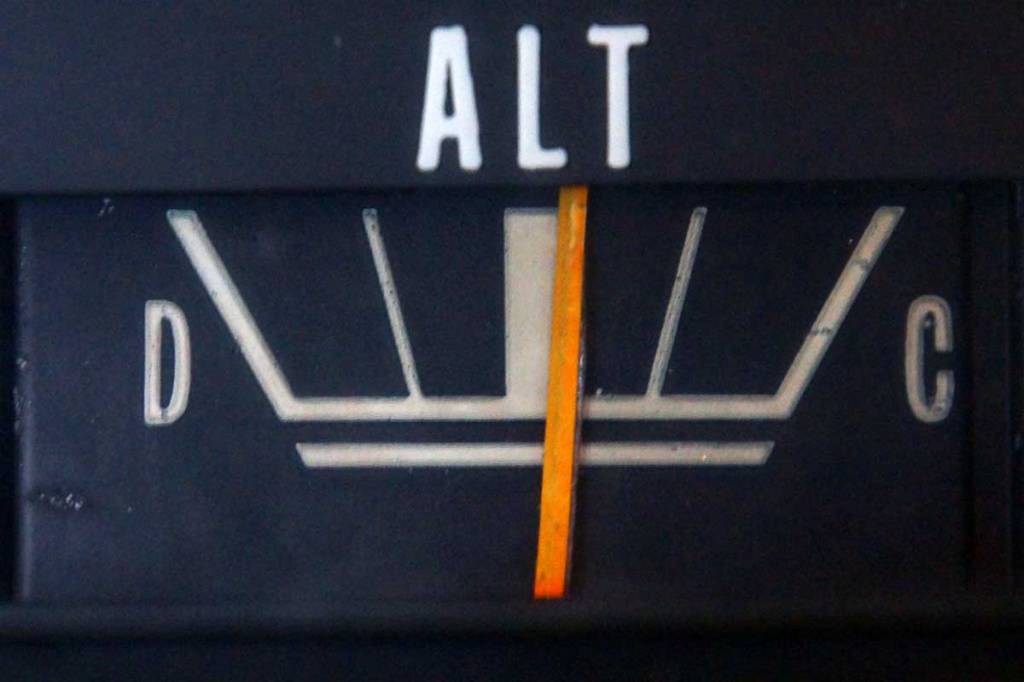

Unlike most manufacturers, Chrysler engineers designed the charging system so that nearly all charging current passed through the ammeter located in the instrument panel. Electricity traveled from the alternator, through the firewall bulkhead connector, into the dashboard ammeter, back through the bulkhead connector, and then to the battery.

When these cars were new, the system worked remarkably well. Typical alternators produced between 35 and 60 amps, wiring connections were clean, and electrical accessories were relatively simple.

The problem is that these vehicles are now more than fifty years old.

Age Is the Real Enemy

Time has not been kind to electrical connections. Moisture, corrosion, vibration, and countless heat cycles gradually increase resistance at terminals and connectors. The bulkhead connector, in particular, has become notorious among Mopar enthusiasts.

As resistance increases, heat follows.

Many owners have discovered melted bulkhead connectors, scorched wiring, damaged ammeter terminals, and charging system failures. In extreme cases, electrical fires have occurred when connections became loose enough to create significant heat.

The original design wasn’t necessarily flawed—it was simply never intended to operate for half a century.

Enter the Voltmeter

A voltmeter performs the same monitoring function without carrying charging current.

Instead of routing 40, 60, or even 100 amps through the dashboard, a voltmeter merely samples system voltage through a low-current circuit. The heavy charging current remains under the hood where it belongs.

The result is a simpler and safer electrical system.

Owners who convert to a voltmeter often report improved charging consistency, reduced voltage drop, and greater confidence when driving long distances.

What Information Does a Voltmeter Provide?

Some enthusiasts hesitate because they believe an ammeter provides more useful information. In reality, a voltmeter can tell the driver a great deal about the health of the charging system.

A fully charged battery at rest should measure approximately 12.6 volts. With the engine running, most charging systems operate between 13.5 and 15.0 volts.

If voltage remains below 13 volts while driving, a charging problem likely exists. If voltage climbs above 15 volts, the regulator may be malfunctioning.

A quick glance at the gauge immediately reveals whether the charging system is doing its job.

Why Some Owners Keep the Ammeter

For many restorers, authenticity matters more than convenience.

A numbers-matching Hemi Road Runner, GTX, Super Bee, or ‘Cuda is a historical artifact as much as it is a vehicle. Preserving original components and factory operation is often part of the ownership experience.

Many owners successfully retain the factory ammeter by carefully restoring connections, repairing bulkhead terminals, and ensuring the charging system remains in excellent condition.

Others choose a compromise by modifying the original ammeter internals so the gauge appears stock while functioning as a voltmeter behind the scenes.

The Bottom Line

The factory Chrysler ammeter wasn’t a bad idea in 1968. It was designed around the technology, electrical loads, and expected service life of the era. However, today’s classic Mopars are carrying decades of wear, corrosion, and often significantly higher electrical demands than their engineers ever envisioned.

For owners focused on originality, a properly maintained ammeter system can continue to serve reliably. For those who prioritize safety, reliability, and regular driving, converting to a voltmeter remains one of the most practical upgrades available.

In the end, the decision comes down to how the car is used. Show car or driver, survivor or restored street machine, every Mopar owner must decide where authenticity ends and practicality begins.
